首页 > 电工电料 > 端子 > Y型绝缘端子( 商品编号: 840656032)

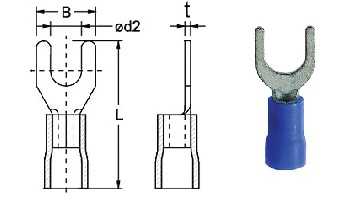

Y型绝缘端子
商品名称: Y型绝缘端子
商品编号: 840656032
商品品牌: morcato
供应商产品编号: 840656032
如果您想购买此商品，或需要咨询此商品相关信息，请联系我们的销售代表。

电话: +86 21 6401 5907,  6401 5908,  6401 5909
传真: +86 21 6401 7868
邮箱: sales#morcato.com (阁下如需使用此邮箱，请把"#"替换为"@")
商品详细信息
Y型设计提供快速、简易的安装方式，无需移除螺丝即可安装。 绝缘外壳防止在压接时损坏电线。 黄铜接缝铜管可保护、防止电线在压接时滑脱。 材质: PVC耐燃材质、铜(镀锡)
Y型绝缘端子
商品规格说明 (84065)
Y型绝缘端子 产品编号Y型绝缘端子 规格说明
8406500120.5mm2, 12mm, white
8406500140.5mm2, 14mm, white
8406500160.5mm2, 16mm, white
8406500240.75mm2, 12mm, grey
8406500280.75mm2, 14mm, grey
8406500320.75mm2, 16mm, grey
8406500360.75mm2, 18mm, grey
8406501121mm2, 12mm, red
8406501141mm2, 14mm, red
8406501161mm2, 16mm, red
8406501181mm2, 18mm, red
8406501281.5mm2, 14mm, black
8406501321.5mm2, 16mm, black
8406501361.5mm2, 18mm, black
8406501481.5mm2, 24mm, black
8406502142.5mm2, 14mm, blue
8406502182.5mm2, 18mm, blue
8406502242.5mm2, 24mm, blue
8406503174mm2, 17mm, grey
8406503204mm2, 20mm, grey
8406503264mm2, 26mm, grey
8406503406mm2, 20mm, yellow
8406503526mm2, 26mm, yellow
84065042210mm2, 22mm, red
84065042810mm2, 28mm, red
84065044816mm2, 24mm, blue
84065045616mm2, 28mm, blue
84065053025mm2, 30mm, 16mm, yellow
84065053225mm2, 30mm, 18mm, yellow
84065053625mm2, 36mm, yellow
84065063035mm2, 30mm, red
84065063235mm2, 32mm, red
84065063935mm2, 39mm, red
84065073650mm2, 36mm, blue
84065074050mm2, 40mm, blue
8406520102x0.5mm2, 15mm
8406520132x0.75mm2, 15mm
8406520162x0.75mm2, 17mm
8406520192x1.0mm2, 15mm
8406520222x1.0mm2, 17mm
8406520252x1.5mm2, 16mm
8406520282x1.5mm2, 20mm
8406520312x2.5mm2, 18.5mm
8406520342x2.5mm2, 21.5mm
8406520372x4.0mm2, 23mm
8406520402x6.0mm2, 26mm
8406520432x10.0mm2, 26.5mm
8406520462x16mm2, 31.5mm
8406540100.5-1mm2, 2.8mm screw
8406540130.5-1mm2, 3.2mm screw
8406540160.5-1mm2, 3.7mm screw
8406540190.5-1mm2, 4.3mm screw
8406540220.5-1mm2, 5.3mm screw
8406540250.5-1mm2, 6.5mm screw
8406540280.5-1mm2, 8.4mm screw
8406540310.5-1mm2, 10.5mm screw
8406540340.5-1mm2, 13.0mm screw
840654037>1-2.5mm2, 3.2mm screw
840654040>1-2.5mm2, 3.7mm screw
840654043>1-2.5mm2, 4.3mm screw
840654046>1-2.5mm2, 5.3mm screw
840654049>1-2.5mm2, 6.5mm screw
840654052>1-2.5mm2, 8.4mm screw
840654055>1-2.5mm2, 10.5mm screw
840654058>1-2.5mm2, 13.0mm screw
840654061>2.5-6mm2, 4.3mm screw
840654064>2.5-6mm2, 5.3mm screw
840654067>2.5-6mm2, 6.5mm screw
840654070>2.5-6mm2, 8.4mm screw
840654073>2.5-6mm2, 10.5mm screw
8406560320.5-1mm2, 3.2mm screw
8406560370.5-1mm2, 3.7mm screw
8406560430.5-1mm2, 4.3mm screw
8406560530.5-1mm2, 5.3mm screw
8406560650.5-1mm2, 6.5mm screw
840656132>1-2.5mm2, 3.2mm screw
840656137>1-2.5mm2, 3.7mm screw
840656143>1-2.5mm2, 4.3mm screw
840656153>1-2.5mm2, 5.3mm screw
840656165>1-2.5mm2, 6.5mm screw
840656243>2.5-6mm2, 4.3mm screw
840656253>2.5-6mm2, 5.3mm screw
840656265>2.5-6mm2, 6.5mm screw
840656284>2.5-6mm2, 8.4mm screw
8406580100.5-1mm2, 12mm
8406580130.5-1mm2, 7mm
8406580160.5-1mm2, 9mm
8406580190.5-1mm2, 10mm
8406580220.5-1mm2, 17mm
840658025>1-2.5mm2, 12mm
840658028>1-2.5mm2, 7mm
840658031>1-2.5mm2, 9mm
840658034>1-2.5mm2, 10mm
840658037>1-2.5mm2, 17mm
840658040>2.5-6mm2, 14mm
8406500120.5mm2, 12mm, white
8406500140.5mm2, 14mm, white
8406500160.5mm2, 16mm, white
8406500240.75mm2, 12mm, grey
8406500280.75mm2, 14mm, grey
8406500320.75mm2, 16mm, grey
8406500360.75mm2, 18mm, grey
8406501121mm2, 12mm, red
8406501141mm2, 14mm, red
8406501161mm2, 16mm, red
8406501181mm2, 18mm, red
8406501281.5mm2, 14mm, black
8406501321.5mm2, 16mm, black
8406501361.5mm2, 18mm, black
8406501481.5mm2, 24mm, black
8406502142.5mm2, 14mm, blue
8406502182.5mm2, 18mm, blue
8406502242.5mm2, 24mm, blue
8406503174mm2, 17mm, grey
8406503204mm2, 20mm, grey
8406503264mm2, 26mm, grey
8406503406mm2, 20mm, yellow
8406503526mm2, 26mm, yellow
84065042210mm2, 22mm, red
84065042810mm2, 28mm, red
84065044816mm2, 24mm, blue
84065045616mm2, 28mm, blue
84065053025mm2, 30mm, 16mm, yellow
84065053225mm2, 30mm, 18mm, yellow
84065053625mm2, 36mm, yellow
84065063035mm2, 30mm, red
84065063235mm2, 32mm, red
84065063935mm2, 39mm, red
84065073650mm2, 36mm, blue
84065074050mm2, 40mm, blue
8406520102x0.5mm2, 15mm
8406520132x0.75mm2, 15mm
8406520162x0.75mm2, 17mm
8406520192x1.0mm2, 15mm
8406520222x1.0mm2, 17mm
8406520252x1.5mm2, 16mm
8406520282x1.5mm2, 20mm
8406520312x2.5mm2, 18.5mm
8406520342x2.5mm2, 21.5mm
8406520372x4.0mm2, 23mm
8406520402x6.0mm2, 26mm
8406520432x10.0mm2, 26.5mm
8406520462x16mm2, 31.5mm
8406540100.5-1mm2, 2.8mm screw
8406540130.5-1mm2, 3.2mm screw
8406540160.5-1mm2, 3.7mm screw
8406540190.5-1mm2, 4.3mm screw
8406540220.5-1mm2, 5.3mm screw
8406540250.5-1mm2, 6.5mm screw
8406540280.5-1mm2, 8.4mm screw
8406540310.5-1mm2, 10.5mm screw
8406540340.5-1mm2, 13.0mm screw
840654037>1-2.5mm2, 3.2mm screw
840654040>1-2.5mm2, 3.7mm screw
840654043>1-2.5mm2, 4.3mm screw
840654046>1-2.5mm2, 5.3mm screw
840654049>1-2.5mm2, 6.5mm screw
840654052>1-2.5mm2, 8.4mm screw
840654055>1-2.5mm2, 10.5mm screw
840654058>1-2.5mm2, 13.0mm screw
840654061>2.5-6mm2, 4.3mm screw
840654064>2.5-6mm2, 5.3mm screw
840654067>2.5-6mm2, 6.5mm screw
840654070>2.5-6mm2, 8.4mm screw
840654073>2.5-6mm2, 10.5mm screw
8406560320.5-1mm2, 3.2mm screw
8406560370.5-1mm2, 3.7mm screw
8406560430.5-1mm2, 4.3mm screw
8406560530.5-1mm2, 5.3mm screw
8406560650.5-1mm2, 6.5mm screw
840656132>1-2.5mm2, 3.2mm screw
840656137>1-2.5mm2, 3.7mm screw
840656143>1-2.5mm2, 4.3mm screw
840656153>1-2.5mm2, 5.3mm screw
840656165>1-2.5mm2, 6.5mm screw
840656243>2.5-6mm2, 4.3mm screw
840656253>2.5-6mm2, 5.3mm screw
840656265>2.5-6mm2, 6.5mm screw
840656284>2.5-6mm2, 8.4mm screw
8406580100.5-1mm2, 12mm
8406580130.5-1mm2, 7mm
8406580160.5-1mm2, 9mm
8406580190.5-1mm2, 10mm
8406580220.5-1mm2, 17mm
840658025>1-2.5mm2, 12mm
840658028>1-2.5mm2, 7mm
840658031>1-2.5mm2, 9mm
840658034>1-2.5mm2, 10mm
840658037>1-2.5mm2, 17mm
840658040>2.5-6mm2, 14mm
