首页 > 刀具及刀具用配件 > 刀夹 > 外径刀夹( 商品编号: 420530320)

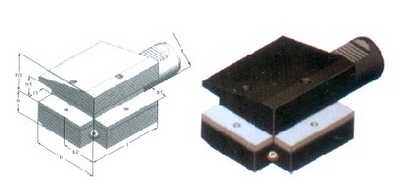

外径刀夹
商品名称: 外径刀夹
商品编号: 420530320
商品品牌: morcato
供应商产品编号: 420530320
如果您想购买此商品,或需要咨询此商品相关信息,请联系我们的销售代表。

电话: +86 21 6401 5907,  6401 5908,  6401 5909
传真: +86 21 6401 7868
邮箱: sales#morcato.com (阁下如需使用此邮箱,请把"#"替换为"@")
商品详细信息
径-轴左旋,B3/C3
外径刀夹
商品规格说明 (42053)
外径刀夹 产品编号外径刀夹 规格说明
420530320d:30mm b:74mm b1:18mm b2:35mm h1:20mm h2:16mm h3:38mm h4:38mm i:70mm i1:18mm Ref.No.:B3/C3-30*20*70
420530425d:40mm b:85mm b1:22mm b2:42.5mm h1:25mm h2:20mm h3:48mm h4:42.5mm i:100mm i1:25mm Ref.No.:B3/C3-40*25*100
420530532d:50mm b:100mm b1:24mm b2:50mm h1:32mm h2:25mm h3:60mm h4:50mm i:120mm i1:24mm Ref.No.:B3/C3-50*32*120
420533320d:30mm b:70mm b1:18mm b2:35mm h1:20mm h2:16mm h3:38mm h4:38mm i:70mm i1:18mm Ref.No.:B4/C4-30*20*70
420533425d:40mm b:85mm b1:22mm b2:42.5mm h1:25mm h2:20mm h3:48mm h4:42.5mm i:100mm i1:25mm Ref.No.:B4/C4-40*25*100
420533532d:50mm b:100mm b1:24mm b2:50mm h1:32mm h2:25mm h3:60mm h4:50mm i:120mm i1:24mm Ref.No.:B4/C4-50*32*120
420536320d:30mm b:76mm b1:35mm h1:20mm i:60mm i1:18mm Ref.No.:D1-30*20
420536425d:40mm b:90mm b1:42.5mm h1:25mm i:72mm i1:22mm Ref.No.:D1-40*25
420536532d:50mm b:105mm b1:50mm h1:32mm i:85mm i1:25mm Ref.No.:D1-50*32
420539320d:30mm b:76mm b1:35mm h1:20mm i:60mm i1:18mm Ref.No.:D2-30*20
420539425d:40mm b:90mm b1:42.5mm h1:25mm i:72mm i1:22mm Ref.No.:D2-40*25
420539532d:50mm b:105mm b1:50mm h1:32mm i:85mm i1:25mm Ref.No.:D2-50*32
420530320d:30mm b:74mm b1:18mm b2:35mm h1:20mm h2:16mm h3:38mm h4:38mm i:70mm i1:18mm Ref.No.:B3/C3-30*20*70
420530425d:40mm b:85mm b1:22mm b2:42.5mm h1:25mm h2:20mm h3:48mm h4:42.5mm i:100mm i1:25mm Ref.No.:B3/C3-40*25*100
420530532d:50mm b:100mm b1:24mm b2:50mm h1:32mm h2:25mm h3:60mm h4:50mm i:120mm i1:24mm Ref.No.:B3/C3-50*32*120
420533320d:30mm b:70mm b1:18mm b2:35mm h1:20mm h2:16mm h3:38mm h4:38mm i:70mm i1:18mm Ref.No.:B4/C4-30*20*70
420533425d:40mm b:85mm b1:22mm b2:42.5mm h1:25mm h2:20mm h3:48mm h4:42.5mm i:100mm i1:25mm Ref.No.:B4/C4-40*25*100
420533532d:50mm b:100mm b1:24mm b2:50mm h1:32mm h2:25mm h3:60mm h4:50mm i:120mm i1:24mm Ref.No.:B4/C4-50*32*120
420536320d:30mm b:76mm b1:35mm h1:20mm i:60mm i1:18mm Ref.No.:D1-30*20
420536425d:40mm b:90mm b1:42.5mm h1:25mm i:72mm i1:22mm Ref.No.:D1-40*25
420536532d:50mm b:105mm b1:50mm h1:32mm i:85mm i1:25mm Ref.No.:D1-50*32
420539320d:30mm b:76mm b1:35mm h1:20mm i:60mm i1:18mm Ref.No.:D2-30*20
420539425d:40mm b:90mm b1:42.5mm h1:25mm i:72mm i1:22mm Ref.No.:D2-40*25
420539532d:50mm b:105mm b1:50mm h1:32mm i:85mm i1:25mm Ref.No.:D2-50*32
